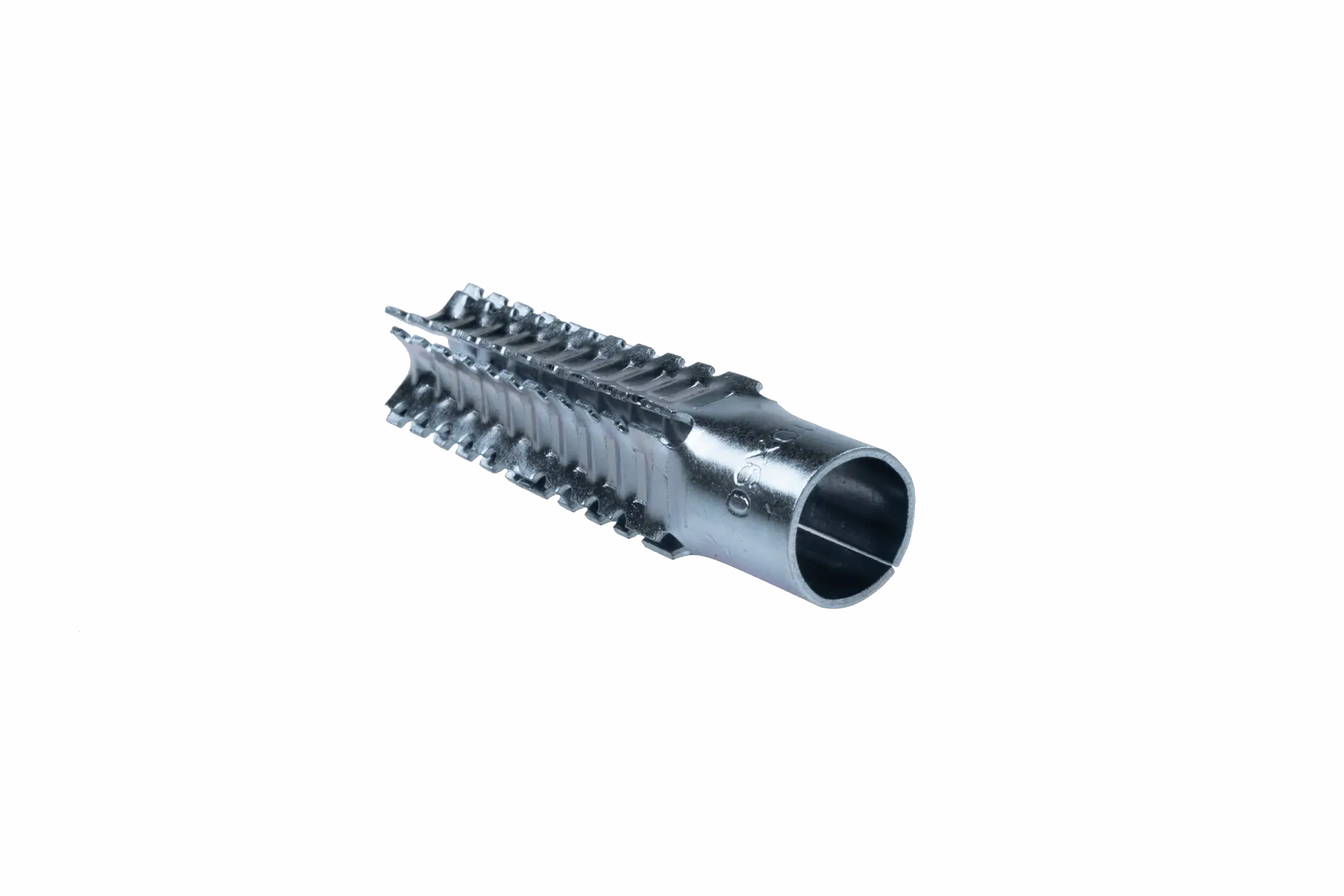

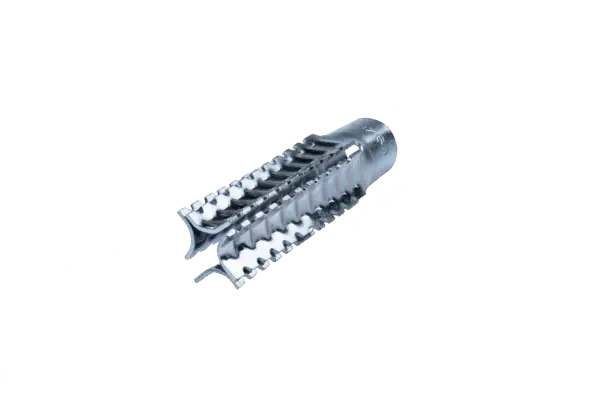

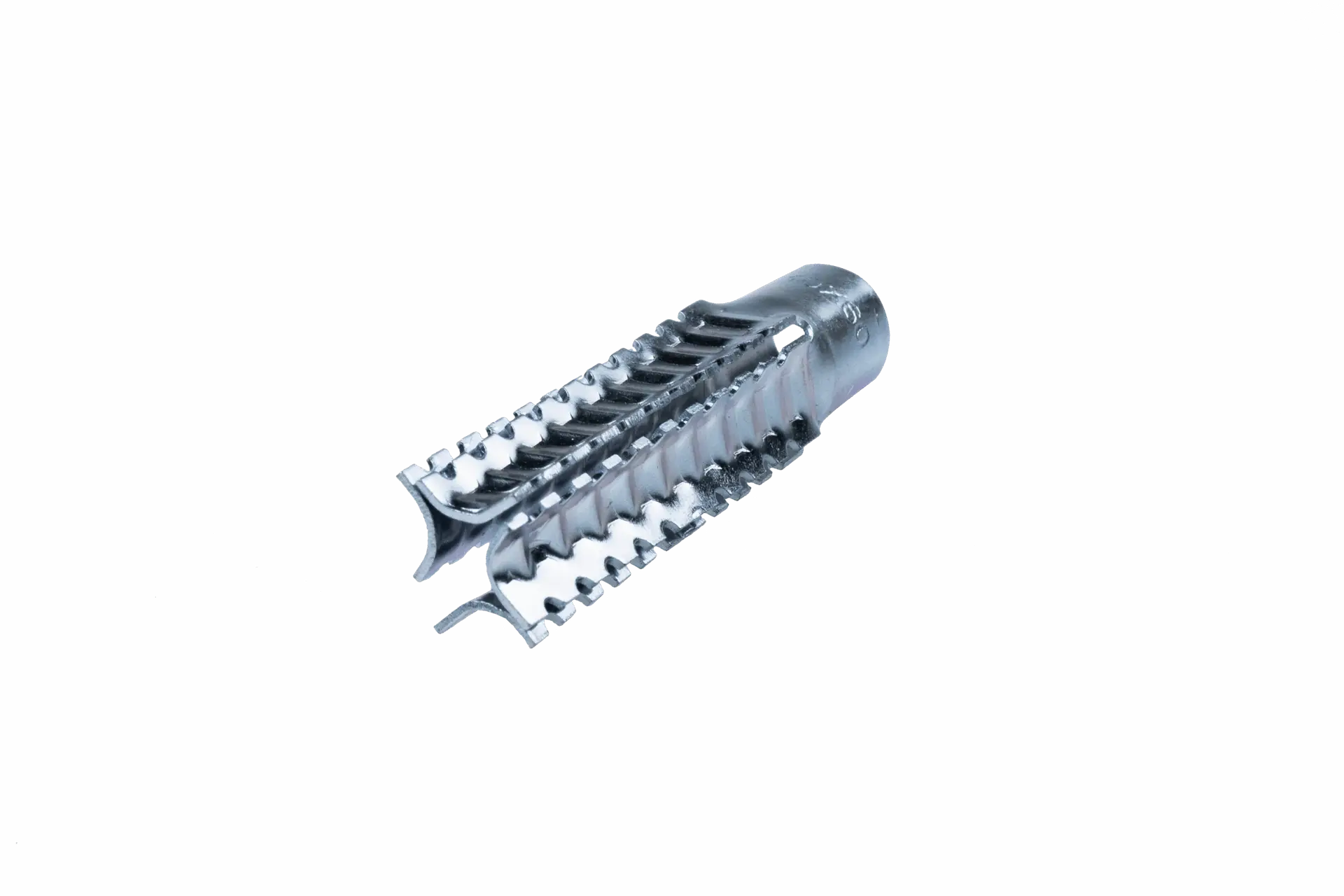

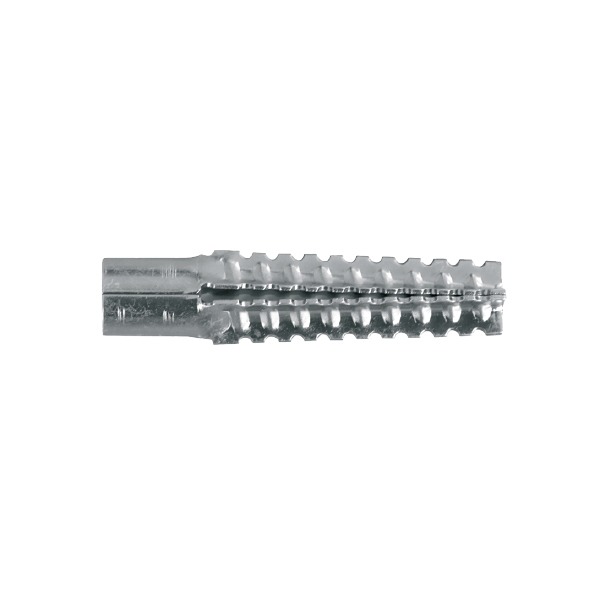

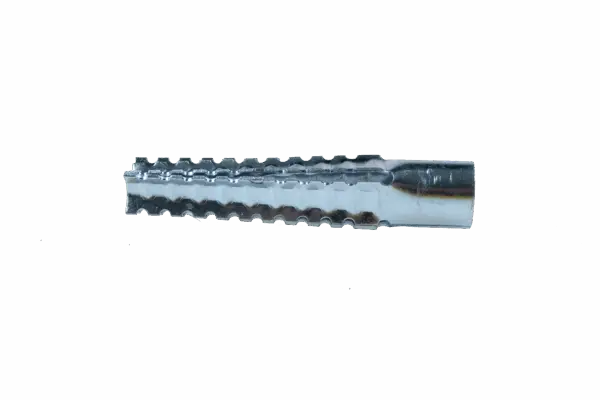

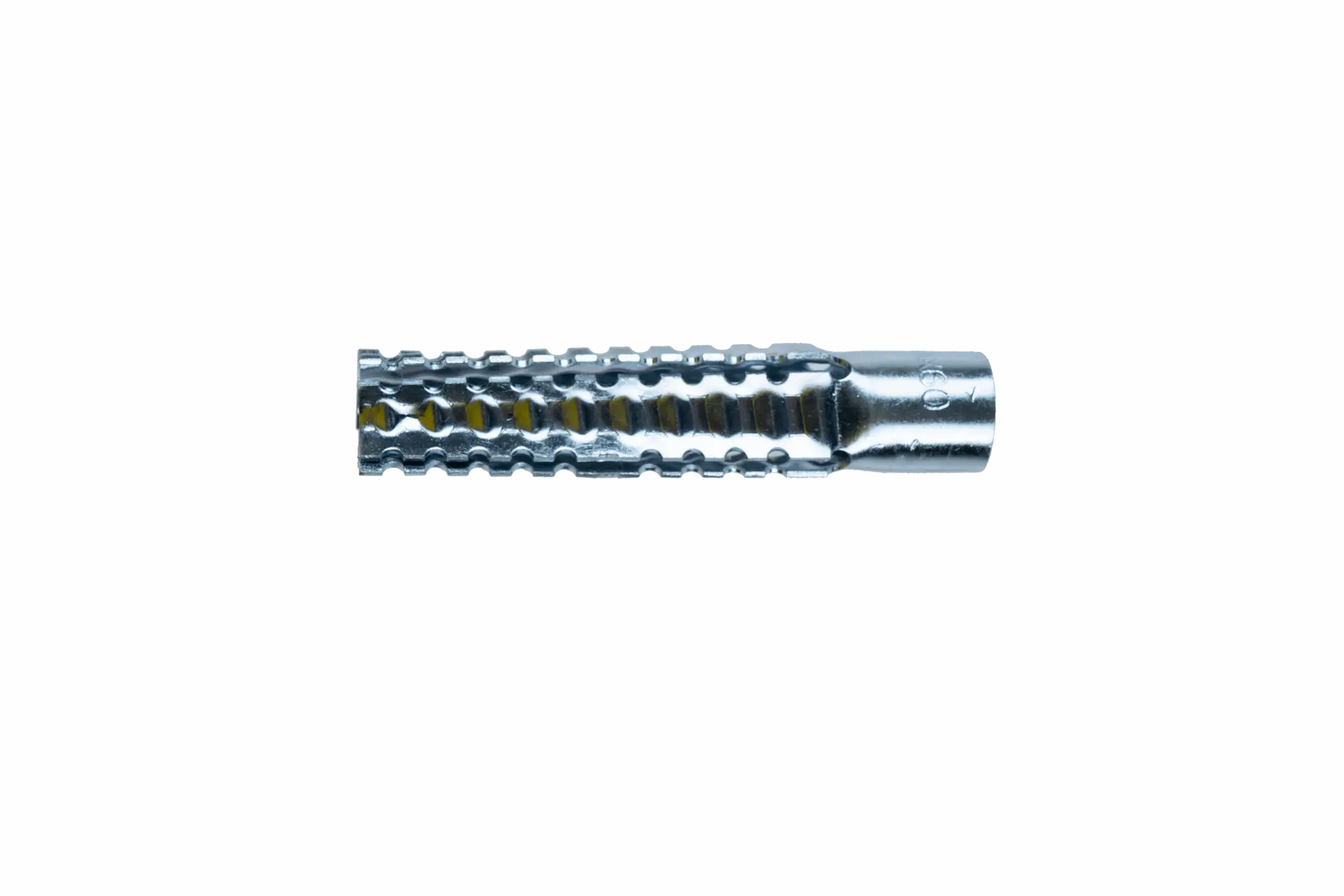

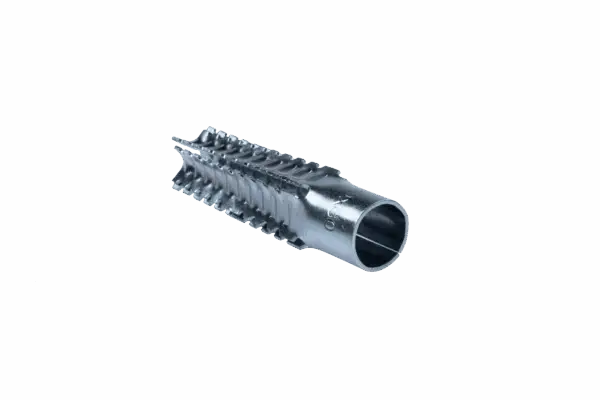

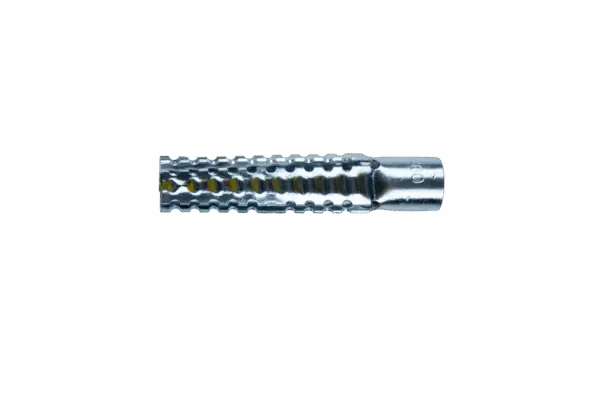

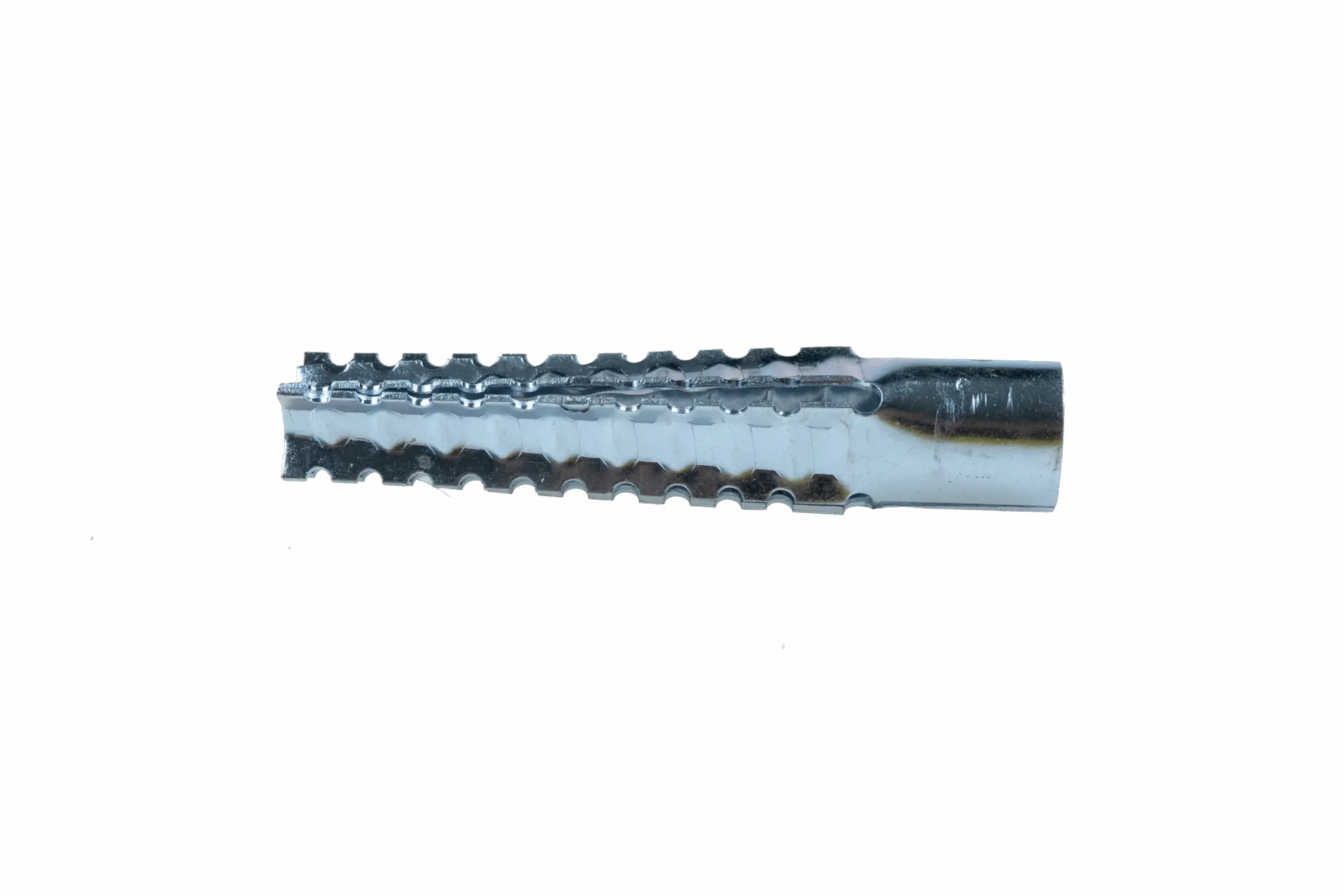

The Trutek TME Anchor is a steel expansion anchor specifically designed for secure fixings in aerated concrete and other lightweight substrates. Its unique expansion mechanism ensures a firm hold in porous materials, making it ideal for various light-duty applications.
Fastening clamps for hydraulic and electrical installations.
Securing battens and square timber in construction projects.
Fixing formwork elements in building structures.
Installing lightweight fixtures in aerated concrete walls.
General-purpose fixings in porous or lightweight masonry materials.
Material: Constructed from carbon steel with a zinc coating of at least 5 μm for corrosion resistance.
Design: Features a four-way expansion mechanism that provides a strong grip in soft base materials.

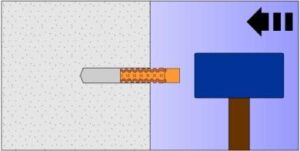

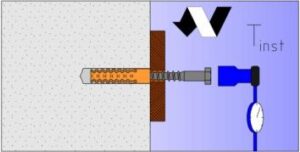

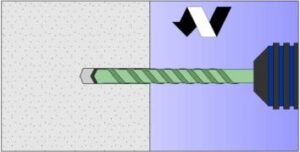

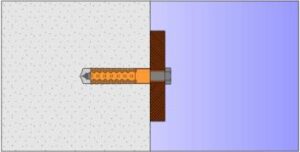

Installation: Quick and easy assembly; the anchor’s internal ribbing allows for secure screw guidance.
Compatibility: Suitable for use with screws of various diameters, depending on anchor size.
Versatility: Effective in substrates like aerated concrete, lightweight concrete, ceramic full brick, and full silicate brick
| Product Code | Hole Diameter (mm) | Anchor Length (mm) | Screw Diameter (mm) | Min. Hole Depth (mm) | Box Packing | Outer Packing |
|---|---|---|---|---|---|---|
| TME 06032 | 7-9 | 32 | 3,5 – 4,0 | 38 | 200 | 3600 |
| TME 08038 | 10-12 | 38 | 3,5 – 4,0 | 46 | 100 | 1800 |
| TME 08060 | 10-12 | 60 | 4,5 – 5,0 | 68 | 100 | 900 |
| TME 10060 | 12-14 | 60 | 6,0 – 8,0 | 68 | 50 | 900 |
