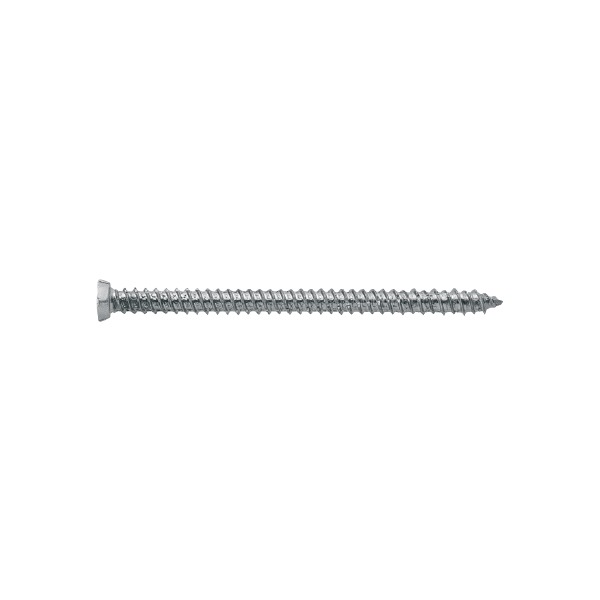

TFCS – Concrete Frame Screw

The Trutek TFCS Window Frame Screw is a high-performance mechanical fastener engineered for secure, efficient installation of window and door frames into various solid and hollow base materials. Its design ensures reliable anchoring without the need for additional plugs or sleeves, streamlining the installation process.

Product Information

Usage

Securing window and door frames to substrates such as concrete, aerated concrete, solid brick, hollow brick, and silicate blocks.
Fastening battens, square timber, and other structural elements in construction projects.

Benefits

Versatility: Suitable for a wide range of base materials, providing flexibility across different construction scenarios.
Efficiency: Eliminates the need for additional components like plugs, reducing installation time and labor costs.
Secure Hold: Offers reliable pull-out and shear load capacities, ensuring long-term stability of installations.
Ease of Use: Simplified installation process with standard tools, facilitating quick and straightforward application.

Product Details

Product Code	Screw Diameter (mm)	Screw Length (mm)	Max. Fixture Thickness (mm)	Drill Hole Diameter (mm)	Box Packing
TFCS75050	7,5	50	20	6	100
TFCS75060	7,5	60	20	6	100
TFCS75070	7,5	70	40	6	100
TFCS75080	7,5	80	50	6	100
TFCS75090	7,5	90	60	6	100
TFCS75100	7,5	100	70	6	100
TFCS75110	7,5	110	80	6	100
TFCS75120	7,5	120	90	6	100
TFCS75130	7,5	130	100	6	100
TFCS75150	7,5	150	120	6	100
TFCS75180	7,5	180	150	6	100
TFCS75200	7,5	200	170	6	100
TFCS75210	7,5	210	180	6	100

Downloads

Technical Data Sheet
