TDA L - Drop-in Anchor Lipped ETA Approved

TDA L – Drop-in Anchor Lipped ETA Approved

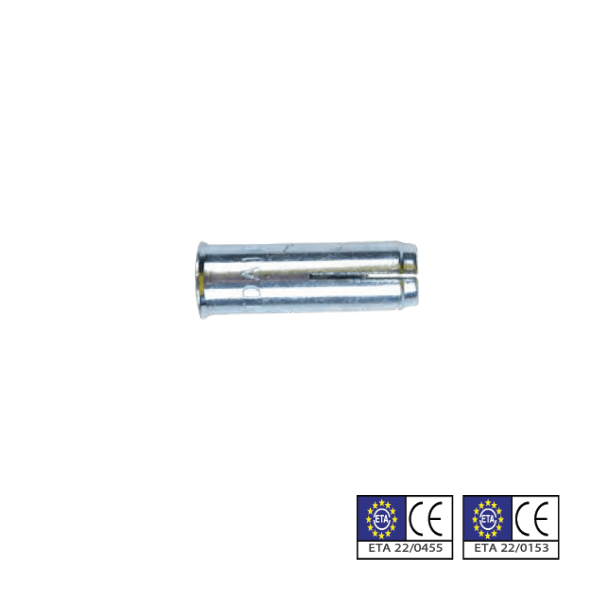

The Trutek TDA Lipped Drop-In Anchor is an internally threaded expansion anchor designed for flush installations in solid concrete. The lipped (collared) design ensures consistent embedment depth, preventing over-insertion during installation.

Product Information

  • installation of piping, ventilation, electrical and technical installations
  • fastening and securing scaffolding and formwork
  • installation of suspended ceilings and lighting
  • one anchor for installation in non-cracked and cracked concrete
  • can be used in a channel plate
  • small embedding depth – substrate thickness from 50mm in the case of a channel plate
  • the sleeve does not protrude above the concrete surface
  • easy removal of the attachment
  • the collarless version allows deeper attachment of the sleeve



Product Code Thread Diameter (mm) Drill Hole Diameter (mm) Anchor Length (mm) Min. Hole Depth (mm) Box Packing Outer Packing
TDA08LS 8 10 25 28 100 2000
TDA08L 8 10 30 33 100 2000
TDA10LS 10 12 25 28 50 1000
TDA10LSM 10 12 30 33 50 1000
TDA10L 10 12 40 43 50 1000
TDA12LS 12 16 25 28 50 500
TDA12L 12 16 50 53 50 500

Technical Data Sheet

Technical Data Sheet Multiple Use

ETA Approval 22/0455

ETA Approval 22/0153

Certificate of Conformity 22/0455

Certificate of Conformity 22/0153

Declaration of Performance 22/0455

Declaration of Performance 22/0153
