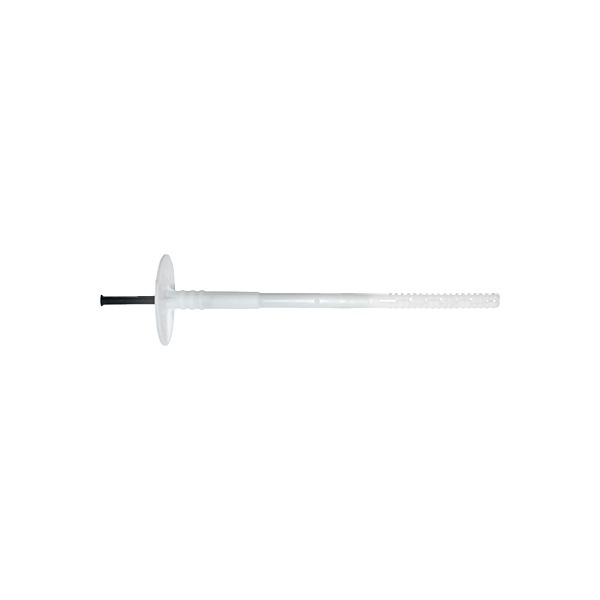

TIA FNWC – Insulation Fixing – Short Expanding Zone – Fibreglass Expanding Nail

The Trutek TIA FNWC Insulation Anchor is a non-corrosive, plastic fixing designed for secure and efficient fastening of insulation panels to various masonry and concrete substrates.

Product Information

Usage

Facades: Fixing EPS or mineral wool insulation boards in ETICS façades.
Ventilated Cladding: Attaching insulation panels prior to lightweight cladding systems.
Roof Parapets: Securing insulation under flat or parapet roof structures.
Concrete & Brick Walls: Use in both renovation and new-build projects on reinforced concrete, brick, silicate blocks, and aerated concrete.
Retrofit Insulation: Ideal for retrofitting insulation on existing façades, walls, or ceilings.

Benefits

Corrosion-Free & UV-Resistant: Durable polypropylene body with steel washer, ideal for outdoor installations.
Thermal-Friendly Design: Plastic body prevents thermal bridging, maintaining insulation efficiency.
Easy, Fast Fixing: Pre-assembled anchor and washer allow rapid gas or hammer installation, reducing labor time.
Uniform Fixing Depth: Washer ensures consistent embedment, improving aesthetic and functional performance.
Versatile & Efficient: Compatible with a range of tools and substrates; handling and shipping are cost-effective due to lightweight design.

Product Details

Product Reference	Drill Hole Diameter (mm)	Anchor Length (mm)	Anchor Depth (mm)	Box Packing
TIA10080FNWC	10	80	50	200
TIA10090FNWC	10	90	50	200
TIA10100FNWC	10	100	50	200
TIA10110FNWC	10	110	50	200
TIA10120FNWC	10	120	50	200
TIA10140FNWC	10	140	50	200
TIA10160FNWC	10	160	50	200
TIA10180FNWC	10	180	50	200
TIA10200FNWC	10	200	50	200
TIA10220FNWC	10	220	50	100
