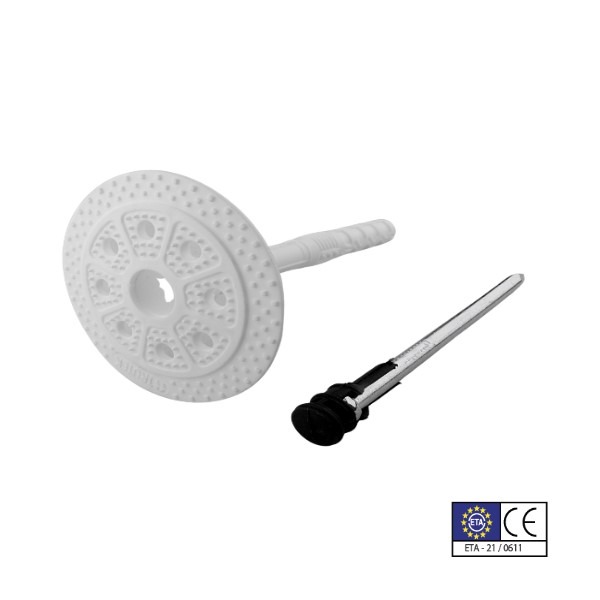

The Trutek TIA MPSE Insulation Anchor is a polymide (plastic) fixing designed specifically for securing insulation boards to substrates like concrete, brick, and masonry. Featuring a short expansion plastic anchor body with a built-in washer and a Steel nail. Its lightweight and corrosion‑free construction make it ideal for thermal insulation façade systems.
Fixing expanded polystyrene (EPS) or mineral wool boards in External Thermal Insulation Composite Systems (ETICS).
Securing insulation panels in renovation or new construction façades.
Anchoring insulation beneath ventilated cladding or rendering systems.
Attaching boards in roof insulation systems, such as concrete parapets or flat rooftops.
Installation in various wall structures—reinforced concrete, solid brick, silicate brick, and aerated blocks.
Corrosion‑Free & UV‑Stable: Made from weather-resistant polypropylene—durable in outdoor exposure.
Fast & Clean Installation: Universal head and pre-mounted washer enable rapid hammer-fixing without drilling.
Thermal Efficiency Friendly: Plastic design avoids thermal bridging by eliminating cold-conductive metal components.
Versatile Substrate Compatibility: Effective in both solid and lightweight substrates; pre-sets automatically during installation.
Cost‑Effective: Lightweight and stackable, reducing transport and handling costs while ensuring consistent fixing depth.
| Product Reference | Drill Hole Diameter (mm) | Anchor Length (mm) | Anchor Depth (mm) | Suitable for Insulation thickness | Outer Packing |
|---|---|---|---|---|---|
| TIA10120MPSE | 10 | 120 | 50 | 60-70 | 200 |
| TIA10140MPSE | 10 | 140 | 50 | 80-90 | 200 |
| TIA10160MPSE | 10 | 160 | 50 | 100-110 | 200 |
| TIA10180MPSE | 10 | 180 | 50 | 120-130 | 200 |
| TIA10200MPSE | 10 | 200 | 50 | 140-150 | 200 |
| TIA10220MPSE | 10 | 220 | 50 | 150-170 | 200 |
| TIA10260MPSE | 10 | 260 | 50 | 200-210 | 200 |
