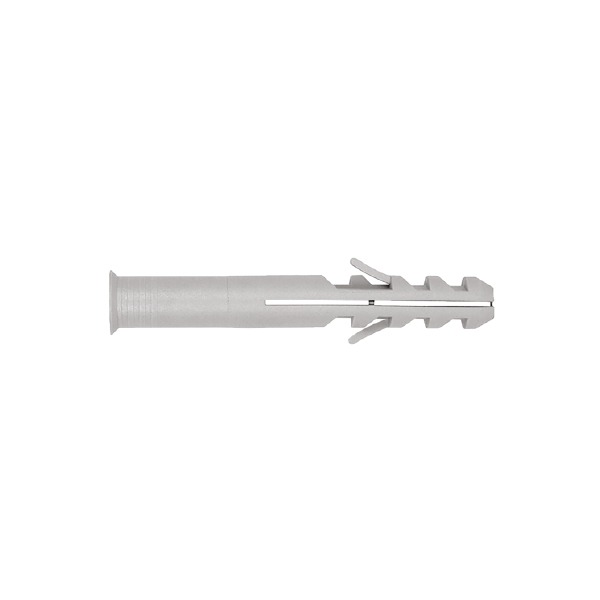

The Trutek TNP L Scaffold Restraint Sleeve is a specialized anchoring component designed to complement the Trutek Scaffold Restraint Bolt system. It facilitates secure and efficient scaffold tie-ins to various solid base materials, ensuring stability and safety on construction sites.
Securing scaffolding structures to building facades or other solid surfaces.
Providing anchorage points for temporary structures requiring lateral stability.
Used in conjunction with scaffold tie systems to prevent movement or collapse.
Material Compatibility: Suitable for use in solid base materials such as concrete, natural stone, full ceramic brick, full silicate brick, and concrete blocks.

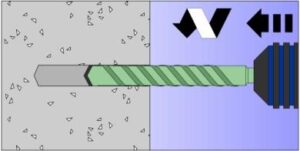

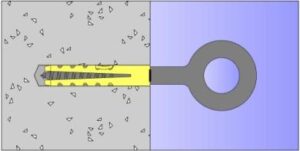

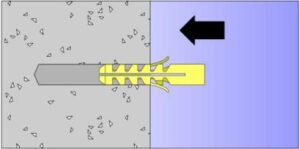

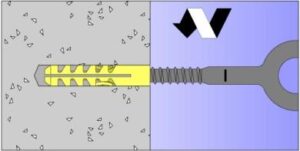

Design and Installation: The sleeve can be secured with an appropriate plug, allowing for quick and easy assembly and disassembly. It also offers the possibility of fixing through an insulation layer, enhancing its versatility on-site.
| Product Code | Anchor Diameter (mm) | Anchor Length (mm) | Thread Length (mm) | Eye Diameter (mm) | Working Length (mm) | Box Packing | Outer Packing |
|---|---|---|---|---|---|---|---|
| TNP14075 L | 14 | 85 | 75 | 23 | – | 50 | 1800 |
| TNP14100 L | 14 | 110 | 100 | 23 | – | 50 | 600 |
| TNP14135 L | 14 | 145 | 135 | 23 | – | 50 | 600 |
| TNP14185 L | 14 | 195 | 185 | 23 | – | 50 | 600 |
