TCM500 – Pure Epoxy Styrene Free

The Trutek TCM500 Pure Epoxy is a premium, two-component, styrene-free injection resin engineered for heavy-duty anchoring applications in both cracked and non-cracked concrete, as well as natural stone. Certified with European Technical Assessments (ETA 20/0059 and 20/0150), it ensures exceptional load-bearing capacity, chemical resistance, and long-term durability, making it ideal for critical structural fixings.

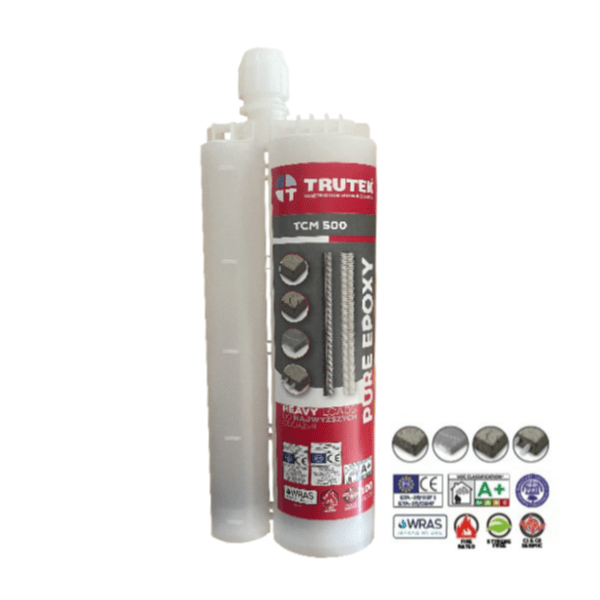

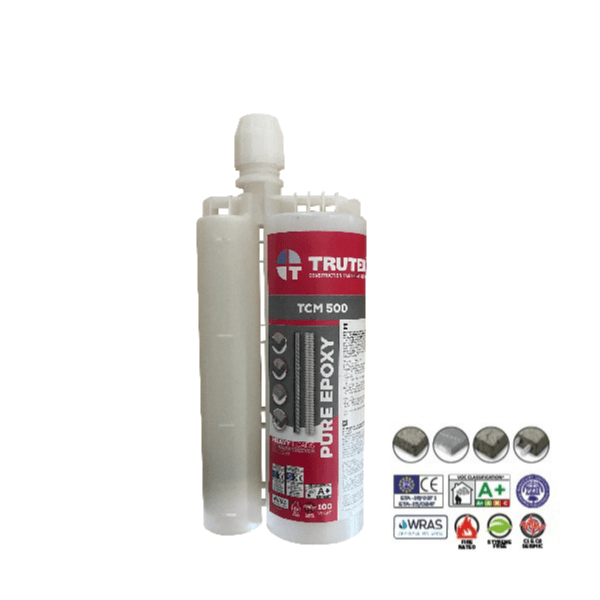

Available in both 385ml and 585ml 3:1 cartridges.

100 year service life and C1 & C2 Seismic approved.

Product Information

Usage

bonding threaded and reinforcing bars in concrete, non-cracked concrete and natural stone
bonding M8-M30 threaded and ø10-ø32 reinforcing bars in cracked concrete
fixing ø8-ø40 reinforcing bar primers
fixing all types of building structures
fixing port wharf infrastructure
fixing barriers, acoustic screens and barriers on road infrastructure facilities
assembly of heavy machinery and equipment
fixing threaded and reinforcing bars into holes drilled with percussion, percussion technique with automatic extraction of spoil and diamond technique using water

Benefits

100 Year anchor service life
transferring the highest loads in cracked and non-cracked concrete
high adhesion and low resin shrinkage ensure maximum bond strength
possibility of fixing rods to different depths
after curing, it does not react with chemicals and water
WRAS certificate allows the use of resin for fastening drinking water installations
aging-resistant resin
unscented resin – does not contain styrene,
extended gelation and binding time allows deep gluing of threaded and reinforcing bars
wide range of TCS anchor rods range, galvanized steel, hot-dip galvanized steel, A2, A4 stainless steel and HCR stainless steel with increased corrosion resistance 1.4529
24 months of shelf life
