TD Drive Pins

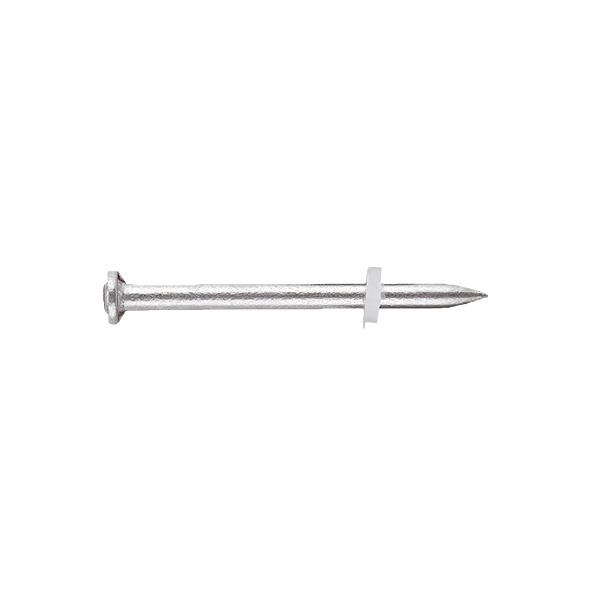

TD PAT Nails (8mm head) are hardened steel powder-actuated tool (PAT) fasteners designed for general-purpose construction applications. They provide a reliable solution for directly fastening materials like metal or wood to tough substrates such as concrete, masonry, and structural steel. Using the explosive charge of a PAT tool, these nails drive deeply into the base material to form a secure hold without pre-drilling, enabling faster installations than traditional anchor-based methods.

For use with: Trutek LV500, LV350

Product Information

Usage

Fastening metal tracks or channels to concrete floors and walls in drywall framing.
Securing wooden elements like furring strips or battens to concrete or masonry surfaces.
Attaching electrical boxes, conduits, or straps to structural concrete or steel.
Installing temporary formwork or bracing during concrete pours.
Mounting light fixtures or brackets to ceilings or walls in industrial and commercial settings.

Benefits

Fast and efficient installation, eliminating the need for drilling or additional anchors.
Strong and secure hold in tough substrates like concrete and steel, ensuring reliable fastening.
Made from hardened steel, offering high resistance to bending or breakage under load.
Compact, single-piece design simplifies usage and reduces handling time on-site.
Compatible with most standard PAT tools, offering flexibility across various jobsite equipment.

Product Details

Product Code	Nail Diameter (mm)	Nail Length (mm)	Type of Substrate	Box Packing	Outer Packing
TD16K	3.8	16	Steel	100	2000
TD19K	3.8	19	Steel	100	2000
TD22K	3.8	22	Steel	100	2000
TD27	3.8	27	Concrete/Brick	100	2000
TD32	3.8	32	Concrete/Brick	100	2000
TD37	3.8	37	Concrete/Brick	100	2000
TD42	3.8	42	Concrete/Brick	100	2000
TD47	3.8	47	Concrete/Brick	100	2000
TD52	3.8	52	Concrete/Brick	100	1000
TD57	3.8	57	Concrete/Brick	100	1000
TD62	3.8	62	Concrete/Brick	100	1000
TD72	3.8	72	Concrete/Brick	100	1000
TD82	3.8	82	Concrete/Brick	100	1000
TD97	3.8	97	Concrete/Brick	100	1000
