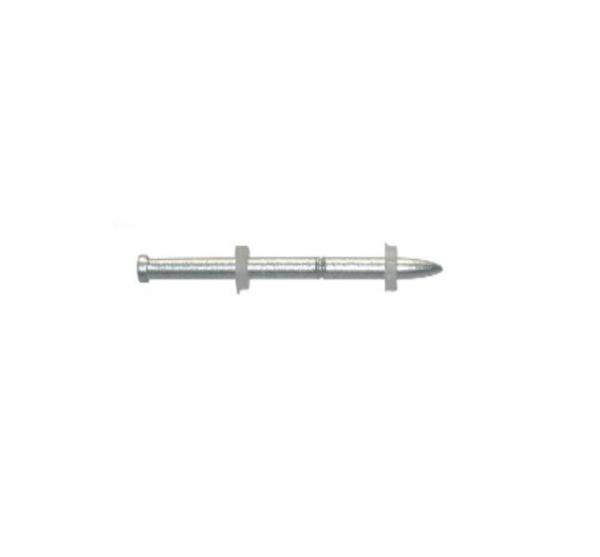

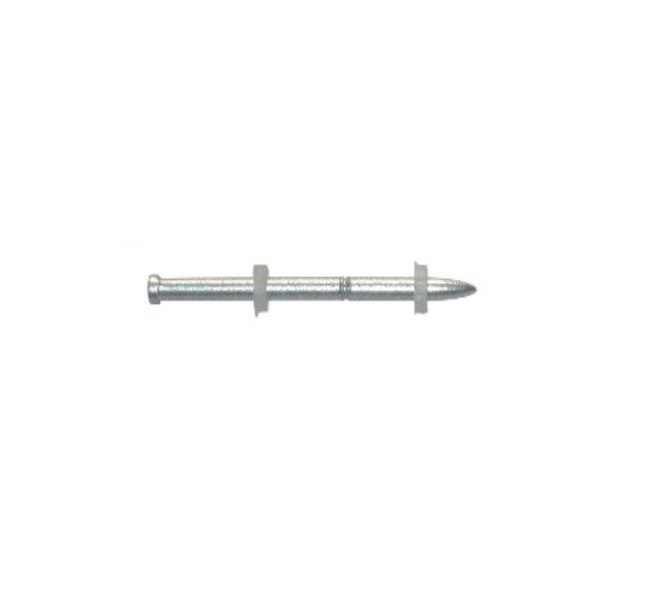

The Trutek TDF Formwork Nail is a heavy-duty, single-use concrete nail engineered for rapid, temporary fastening of formwork or timber to solid substrates using powder-actuated tools.
For use with: Trutek LV500, LV350
Temporary fastening of timber formwork to concrete slabs or walls.
Securing kicker plates during concrete pouring.
Attaching safety barriers or temporary brackets to masonry or steel.
Ideal for positioning and holding concrete formwork, sheeting, or netting.
Working on infrastructure projects where quick setup and clean teardown are essential.
Predefined shear points allow controlled break-off for clean removal of formwork and reusability of wood.
Compatible with powder-actuated tools and suitable for concrete, solid limestone brick, and steel substrates.
Available in multiple lengths (e.g., 47 mm, 54 mm, 62 mm) to match formwork thickness.
Classified as a premium-grade nail designed for temporary applications with safe removal after concrete curing.
| Product Code | Head/Nail Diameter (mm) | Nail Length (mm) | Type of Substrate | Box Packing | Outer Packing |
|---|---|---|---|---|---|
| TDF47 | 8/3.8 | 47 | Concrete | 100 | 2000 |
| TDF54 | 8/3.8 | 54 | Concrete | 100 | 2000 |
| TDF62 | 8/3.8 | 62 | Concrete | 100 | 2000 |
