TETX 10 PH – Insulation Fixing – Plastic Nail

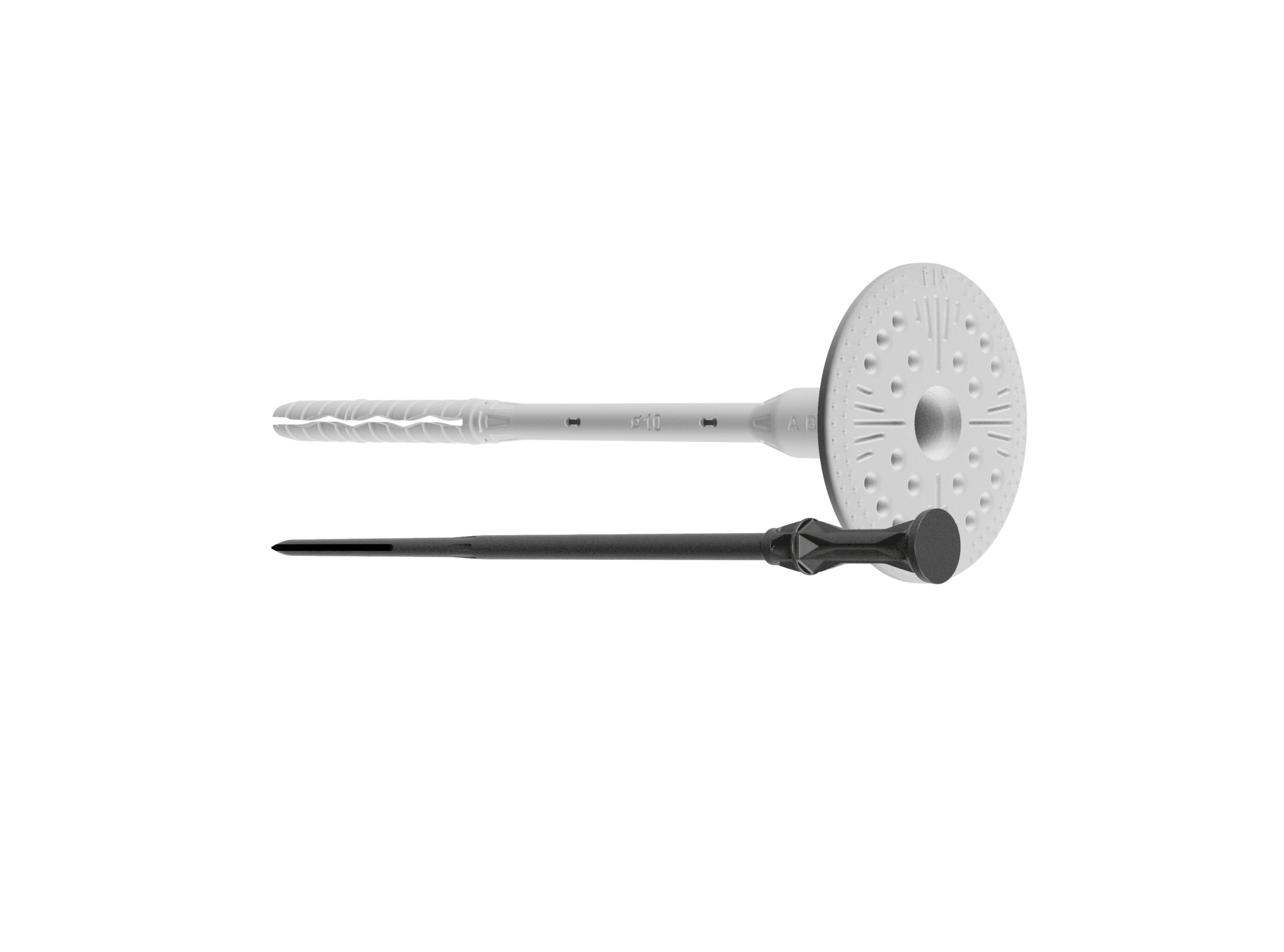

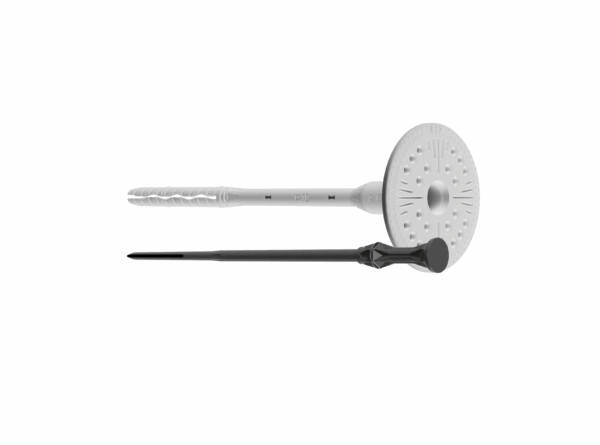

The Trutek ETX 10 MH is an 10 mm polypropylene insulation anchor featuring a plastic pin coated with plastic insulation. It securely fastens insulation boards in External Thermal Insulation Composite Systems (ETICS) on concrete and masonry substrates. It holds European Technical Assessment, ensuring certified performance.

Product Information

Usage

Fixing EPS, mineral wool, PU, cork, and wood‑wool insulation in ETICS façades.
Suitable for renovation and new builds across substrates like reinforced concrete, solid brick, and lightweight block.
Ideal for outdoor walls under roof parapets, ventilated cladding, and soffits.
Provides durable attachment for insulation in both vertical and horizontal builds

Benefits

Thermally efficient: plastic-shrouded pin prevents cold bridging while resisting corrosion.
Time-saving: two anchoring zones and pre-assembled design accelerate installation.
Mechanically robust: metal pin ensures high pull-out and shear strength.
Versatile & cost-effective: one anchor suits multiple insulation thicknesses; shipped and handled easily.
Certified performance: tested and approved under ETA for structural insulation fastening.

Product Details

Product Code	Drill Hole Diameter	Plate Diameter	Anchor Length	Short expansion Hole Depth	Short expansion Insulation Thickness	Long expansion Hole Depth	Long expansion Insulation Thickness	Carton Packing
TETX10100PH	10	60	100	30	60	70	20	100
TETX10120PH	10	60	120	30	80	70	40	100
TETX10140PH	10	60	140	30	100	70	60	100
TETX10160PH	10	60	160	30	120	70	80	100
TETX10180PH	10	60	180	30	140	70	100	100
TETX10200PH	10	60	200	30	160	70	120	100
TETX10220PH	10	60	220	30	180	70	140	100
TETX10240PH	10	60	240	30	200	70	160	100
TETX10260PH	10	60	260	30	220	70	180	100
TETX10280PH	10	60	280	30	240	70	200	100
TETX10300PH	10	60	300	30	260	70	220	100
