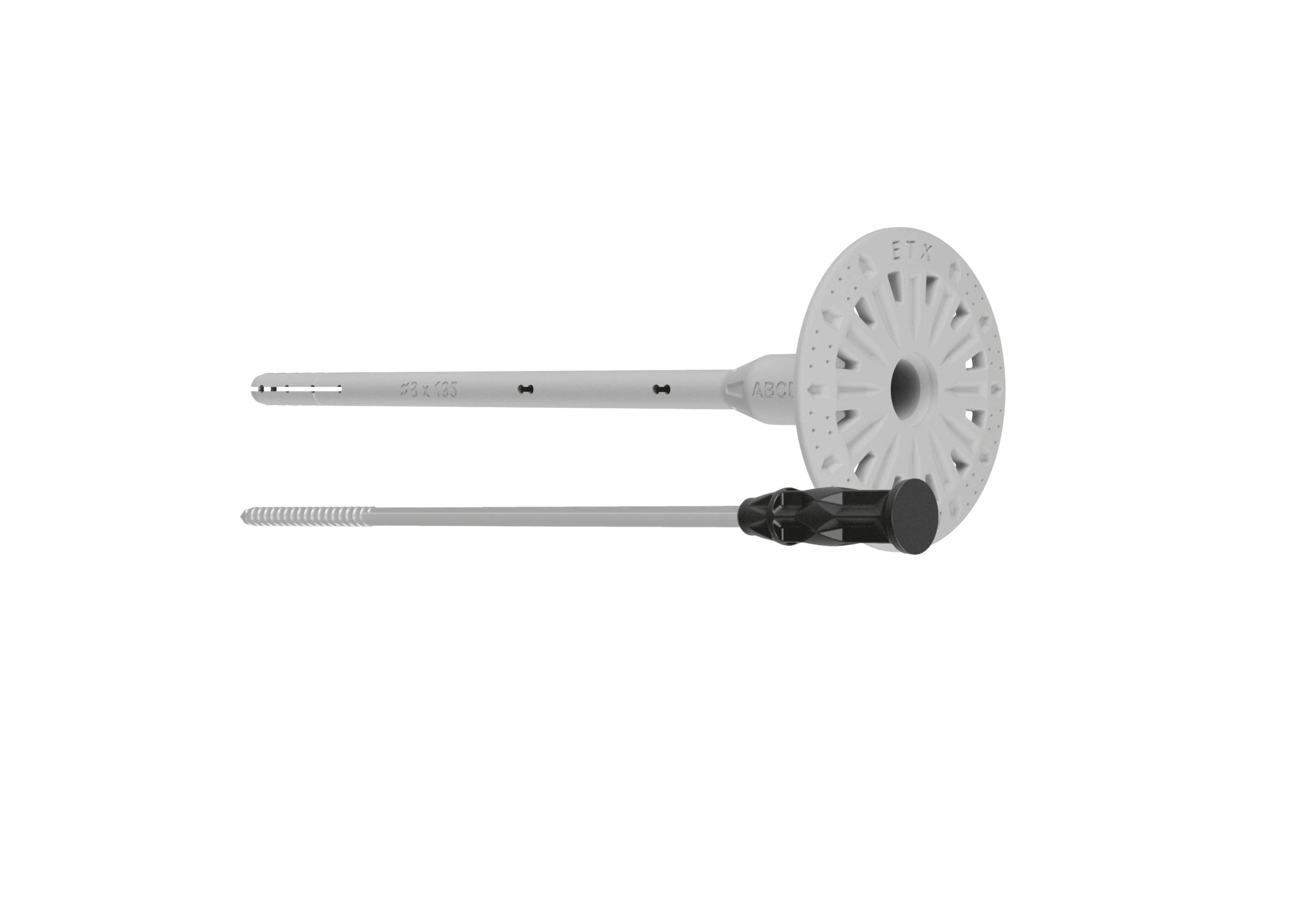

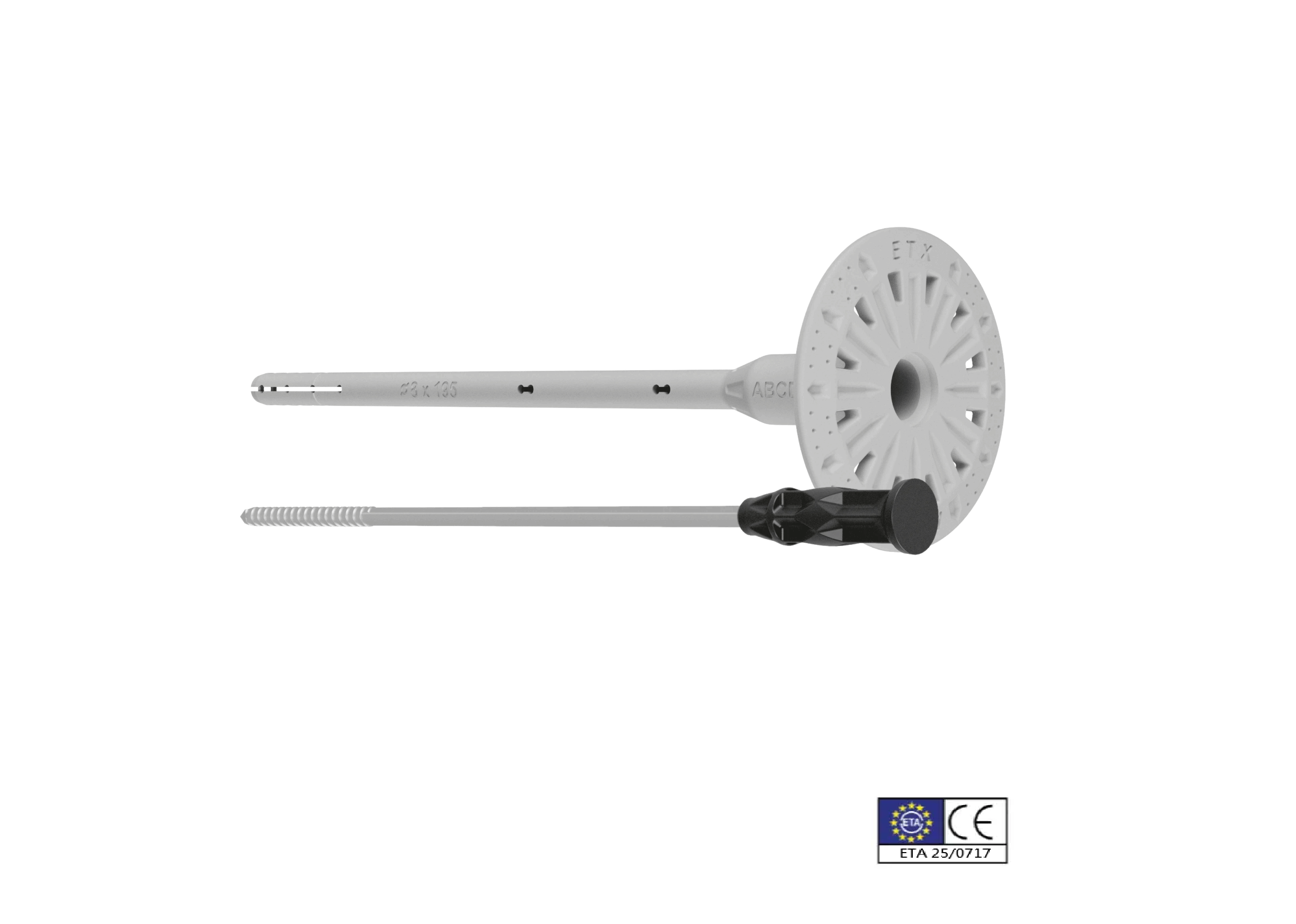

The Trutek ETX‑MH is an 8 mm polypropylene insulation anchor featuring a steel pin coated with plastic insulation. It securely fastens insulation boards in External Thermal Insulation Composite Systems (ETICS) on concrete and masonry substrates. It holds European Technical Assessment, ensuring certified performance.
Fixing EPS or mineral wool boards in ETICS façade systems.
Use on reinforced concrete, solid brick, silicate blocks, and aerated concrete in both new builds and renovations.
Attaching insulation under roof parapets or ventilated cladding.
Ideal for fast, clean installation with gas or powder-actuated tools—no pre-drilling needed.
Working in cold climates or high-altitude projects, where reduced embedment speeds up installation.
Polypropylene body + plastic-coated steel pin – resists corrosion and prevents thermal bridging.
Short embedment depth (25 mm zone) – speeds installation and reduces drilling time and tool wear.
High load capacity – with pull-out strength up to 1.3 kN, and washer rigidity 1.0 kN/mm.
Pre-assembled with washer – ensures consistent fixing depth and easy use with optional insulation washers like TDW.
Cut-to-length flexibility – available in 75–295 mm lengths to match insulation thickness.
| Product Code | Drill Hole Diameter | Plate Diameter | Anchor Length | Hole Depth | Insulation Thickness | Carton Packing |
| TETX08075MH | 8 | 60 | 75 | 35 | 40 | 100 |
| TETX08095MH | 8 | 60 | 95 | 35 | 60 | 100 |
| TETX08115MH | 8 | 60 | 115 | 35 | 80 | 100 |
| TETX08135MH | 8 | 60 | 135 | 35 | 100 | 100 |
| TETX08155MH | 8 | 60 | 155 | 35 | 120 | 100 |
| TETX08175MH | 8 | 60 | 175 | 35 | 140 | 100 |
| TETX08195MH | 8 | 60 | 195 | 35 | 160 | 100 |
| TETX08215MH | 8 | 60 | 215 | 35 | 180 | 100 |
| TETX08235MH | 8 | 60 | 235 | 35 | 200 | 100 |
| TETX08255MH | 8 | 60 | 255 | 35 | 220 | 100 |
| TETX08275MH | 8 | 60 | 275 | 35 | 240 | 100 |
| TETX08295MH | 8 | 60 | 295 | 35 | 260 | 100 |
