TX - Throughbolt ETA Option 1 Crack Approved

TX – Throughbolt ETA Option 1 Crack Approved

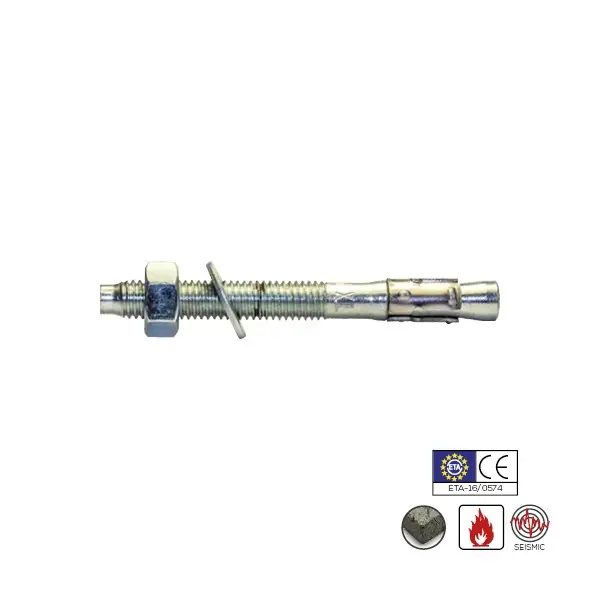

The Trutek TX Throughbolt Anchor is a high-performance mechanical anchor designed for secure and reliable fastening in both cracked and non-cracked concrete substrates, ranging from strength classes C20/25 to C50/60. C1 Seismic for M12 and M16.

Product Information

  • anchor designed for fastening in the range of medium to high loads of building construction elements, facades, barriers, handrails, etc.,
  • fixing storage racks,
  • fastening devices and installation elements to ceilings in cracked concrete,
  • basic anchor for fixing all types of installations inside buildings.
  • one anchor for installation in non-cracked and cracked concrete,
  • easy and quick assembly,
  • fire resistance in the range from R30 to R120,
  • stainless steel expansion ring,
  • cold formed expansion spindle,
  • Marking of anchoring depth at the anchor thread.
Product Code Drill Hole Diameter (mm) Anchor Length (mm) Max. Fixture Thickness (mm) Min. Hole Depth (mm) Box Packing Outer Packing
TX08065 8 65 10 55 100 400
TX08075 8 75 20 55 100 400
TX08095 8 95 40 55 100 400
TX08115 8 115 60 55 100 400
TX10085 10 85 5 75 50 200
TX10100 10 100 20 75 50 200
TX10120 10 120 40 75 50 200
TX10130 10 130 50 75 50 200
TX12090 12 90 5 75 50 200
TX12100 12 100 15 75 50 200
TX12120 12 120 35 75 25 100
TX12135 12 135 50 75 25 100
TX12175 12 175 90 75 25 100
TX16125 16 125 15 100 20 80
TX16150 16 150 40 100 20 80

Technical Data Sheet

ETA Approval 16/0574
