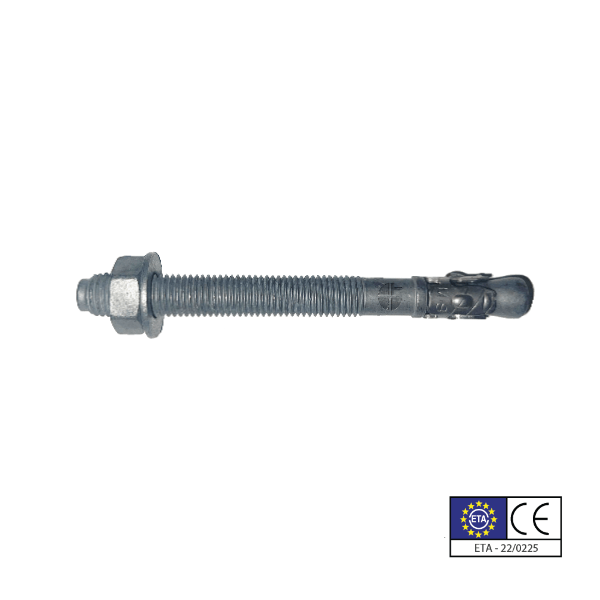

The Trutek TT-G Throughbolt Anchor is a high-performance mechanical anchor designed for secure and reliable fastening in non-cracked concrete substrates. Its hot-dipped galvanized finish ensures enhanced corrosion resistance, making it suitable for a wide range of construction applications.
Securing structural elements in construction projects.
Fastening facades, barriers, and handrails.
Installing storage racks and shelving units.
Anchoring machinery and equipment in industrial settings.
Corrosion Resistance: The hot-dip galvanized coating provides enhanced protection against corrosion, extending the anchor’s lifespan.
Ease of Installation: The through-fixing design and depth markings simplify the installation process, saving time and reducing errors.
Versatility: Suitable for a wide range of applications in both cracked and non-cracked concrete substrates.
Safety Compliance: Meets stringent safety standards with ETA Option 7 approval and fire resistance ratings up to R120.
| Product Code | Drill Hole Diameter (mm) | Anchor Length (mm) | Max. Fixture Thickness (mm) | Min. Hole Depth (mm) | Box Packing | Outer Packing |
|---|---|---|---|---|---|---|
| TT08050G | 8 | 50 | – | 55 | 200 | 800 |
| TT08060G | 8 | 60 | – | 55 | 100 | 400 |
| TT08080G | 8 | 80 | 15 | 55 | 100 | 400 |
| TT08090G | 8 | 90 | 25 | 55 | 100 | 400 |
| TT08115G | 8 | 115 | 50 | 55 | 100 | 400 |
| TT10065G | 10 | 65 | – | 60 | 100 | 400 |
| TT10090G | 10 | 90 | 20 | 60 | 50 | 200 |
| TT10105G | 10 | 105 | 35 | 60 | 50 | 200 |
| TT10120G | 10 | 120 | 50 | 60 | 50 | 200 |
| TT10140G | 10 | 140 | 70 | 60 | 50 | 200 |
| TT12080G | 12 | 80 | – | 75 | 50 | 200 |
| TT12100G | 12 | 100 | 5 | 75 | 50 | 200 |
| TT12120G | 12 | 120 | 25 | 75 | 25 | 100 |
| TT12140G | 12 | 140 | 45 | 75 | 25 | 100 |
| TT12180G | 12 | 180 | 85 | 75 | 25 | 100 |
| TT16115G | 16 | 105 | – | 90 | 25 | 100 |
| TT16125G | 16 | 125 | 5 | 90 | 20 | 80 |
| TT16150G | 16 | 150 | 30 | 90 | 20 | 80 |
