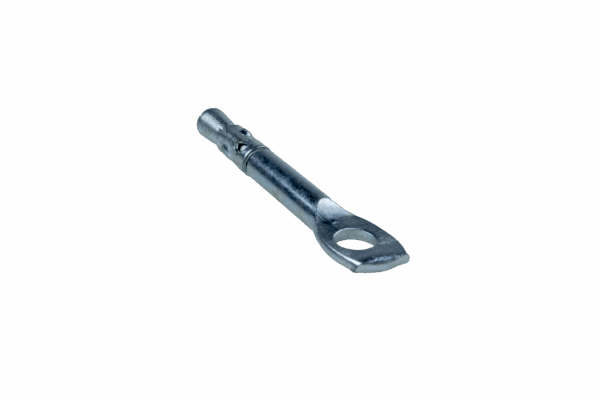

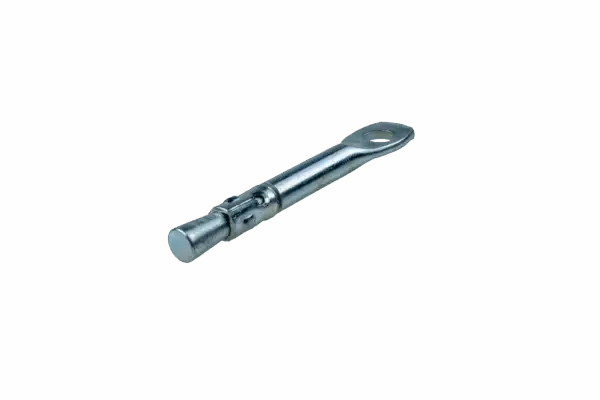

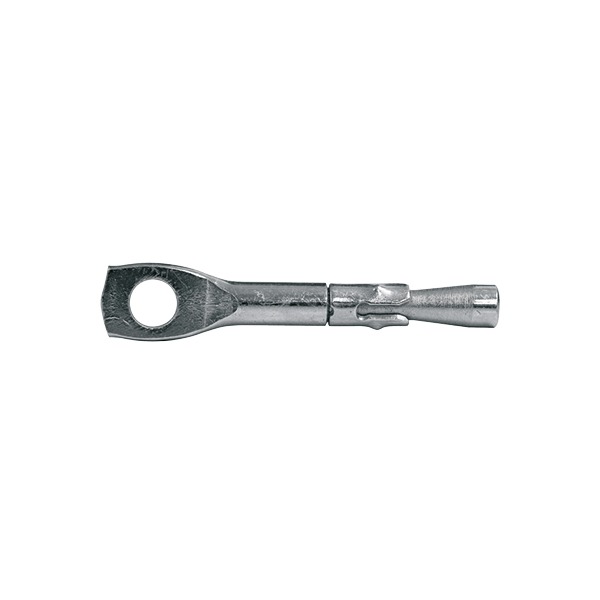

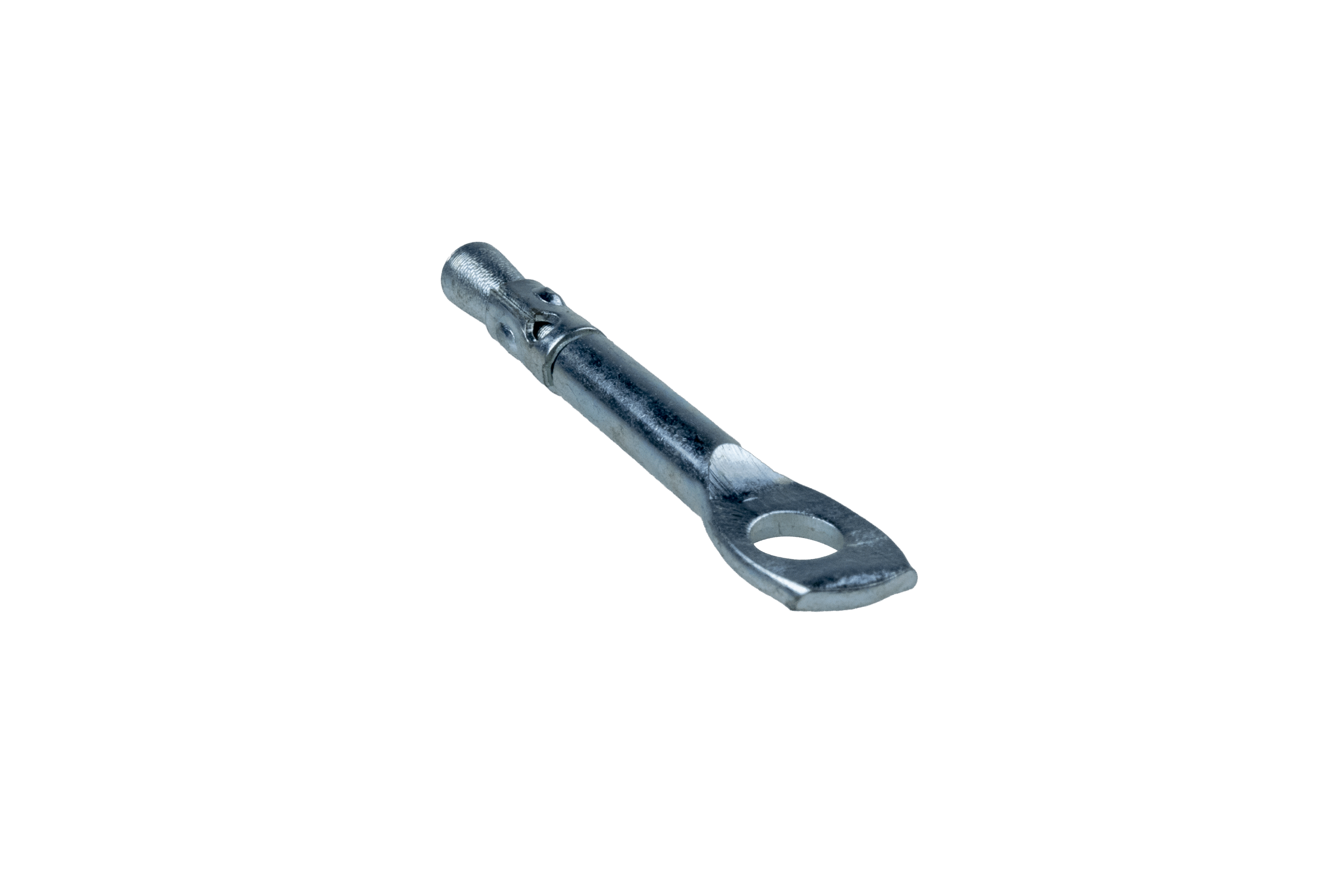

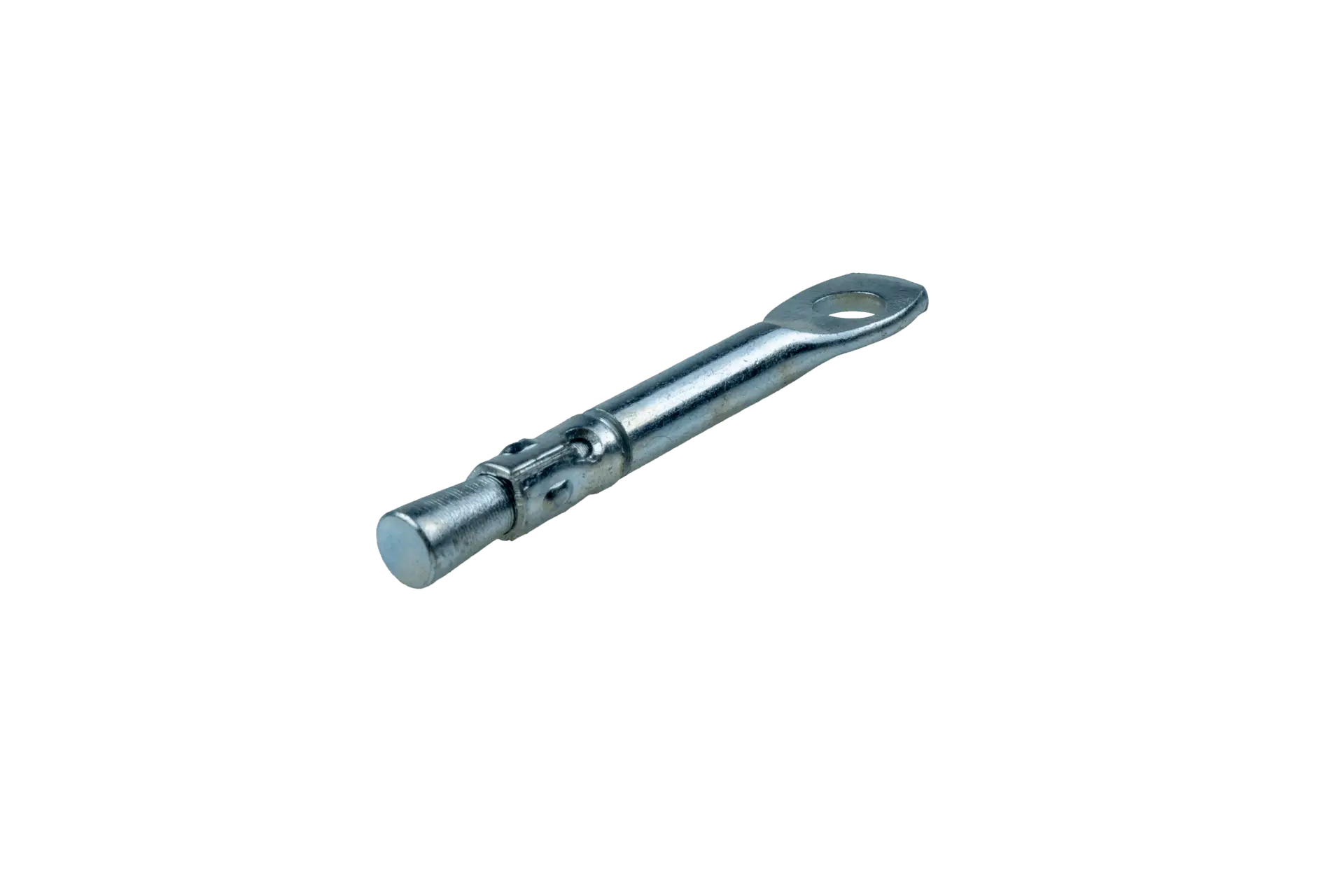

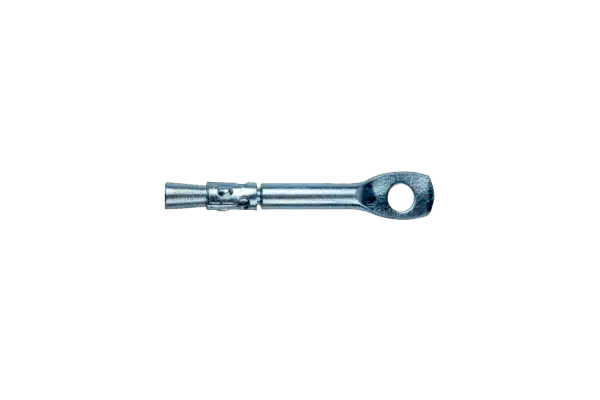

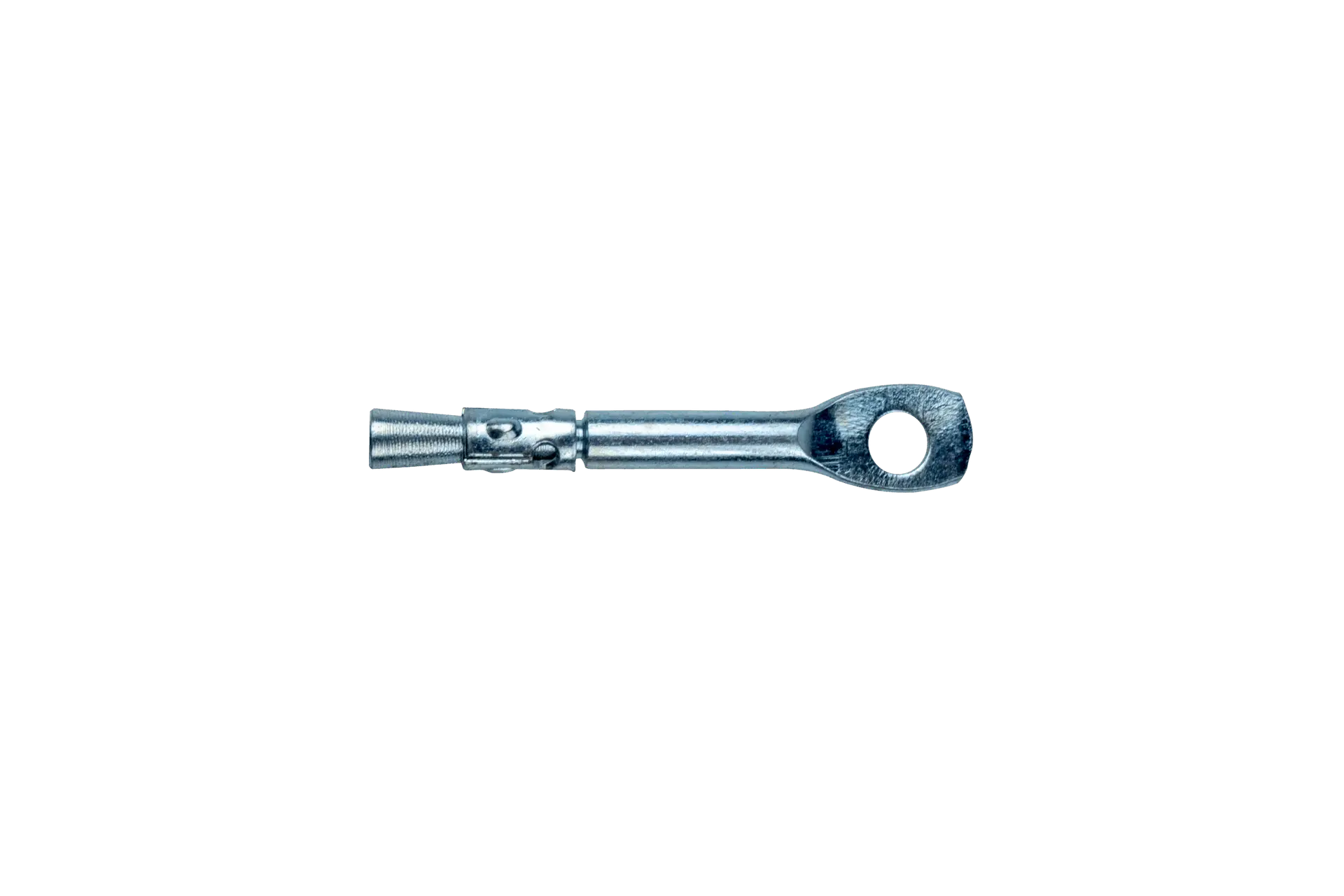

The Trutek TWH Wire Hanger is a galvanized steel anchor designed for quick and secure installation in solid substrates like uncracked concrete and solid brick. Its integrated eyelet end facilitates the suspension of various fixtures, making it ideal for overhead applications.
Fixing hangers to suspended ceilings.
Securing perforated tapes.
Mounting hook slings, chains, lamps, air conditioning units, and sanitary installation slings
Material: Constructed from galvanized carbon steel with a zinc coating up to 5 μm for corrosion resistance.
Design: Features an eyelet end that allows for multiple assembly and disassembly cycles of slings finished with a hook.
Installation: Requires a small hole diameter (6 mm) and offers simple and quick assembly.
Dimensions: Anchor length of 55 mm with a minimum hole depth of 40 mm.
Packaging: Supplied in boxes of 100 pieces.
| Product Code | Hole Diameter (mm) | Anchor Length (mm) | Max. Fixture Thickness (mm) | Min. Hole Depth (mm) | Box Packing | Outer Packing |
|---|---|---|---|---|---|---|
| TWH06055 | 6 | 55 | – | 40 | 100 | 2000 |
